TE Connectivity, AMPSEAL Female 35 Way

AMPSEAL automotive plug style receptacle housings with an IP67 rating, a 4mm centerline and mechanical and coloured keying. These AMPSEAL receptacle housings have a 2 piece contact holding design and secondary locking to prevent contact backout and accept a wire size of 0.5 to 1.25mm^2.

• Rugged and highly reliable design
• IP67 rating to protect against the harshest of conditions
• Housed in a strong plastic
• 2-piece contact hold
• Integrated latch for mating
• Operating temperatures of -40°C to +125°C

Plug connector two-piece contact holding design ensures positive seating without backout

An IP67 rating means this housing can withstand any dust (fully dust tight, even against sand) and can withhold an immersion in water for up-to 1m. It can also handle powerful water jets.

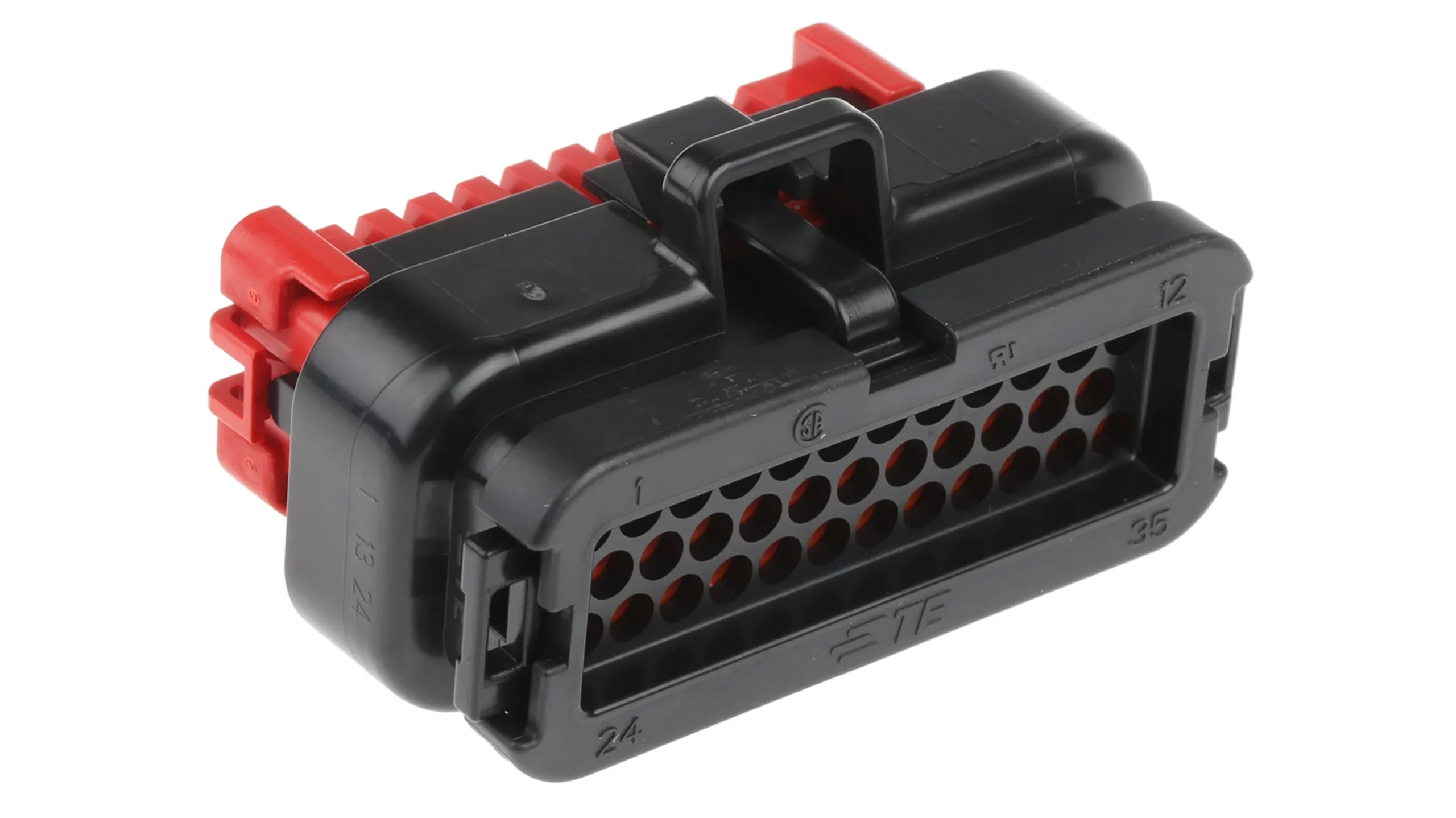

The TE Connectivity 776164-1 is a 35-way housing for female terminals from the AMPSEAL range of connectors. It is made from a black PBT thermoplastic with silicone rubber seals and is designed to connect wire-to-device. This rugged and reliable connector housing designed to withstand high temperatures in automotive applications.
They 776164-1 is designed for 1.3mm contacts in gold or tin and a list of compatible headers can be found below. The 1.3mm contacts have a current rating of up to 17A for gold and 8A for tin.

Compatible Headers (Tin):
776180-1 (Without Seal, Right Angle)
776163-1 (With Seal, Right Angle) – (718-1462)
776230-1 (Without Seal, Vertical) – (718-1490)
776231-1 (With Seal, Vertical) – (719-9463)
Compatible Headers (Gold):
1-776180-1 (Without Seal, Right Angle) – (726-6890)
1-776163-1 (With Seal, Right Angle) – (718-1474)
1-776230-1 (Without Seal, Vertical) – (168-0645)
1-776231-1 (With Seal, Vertical – (718-1478)

Is it waterproof?
Yes the 776164-1 is environmentally sealed with an industry standard rating of IP6K9K.
